139-5223-4320Performance parameter
The CM-H motor is a medium-to-high pressure hydraulic actuator. It uses high-precision gears inside, a floating side plate for axial pressure compensation, and a heavy-duty DU sliding bearing structure. This series of products have the advantages of high pressure, low noise, reliable seal, long service life, and can work in both directions. This motor has a rated pressure of 20MPa, a maximum pressure of 25MPa, a rated speed of 2000r / min, a maximum speed of 2500r / min, a volumetric efficiency of ≥90%, and an operating temperature of -20 ~ 95 ° C.

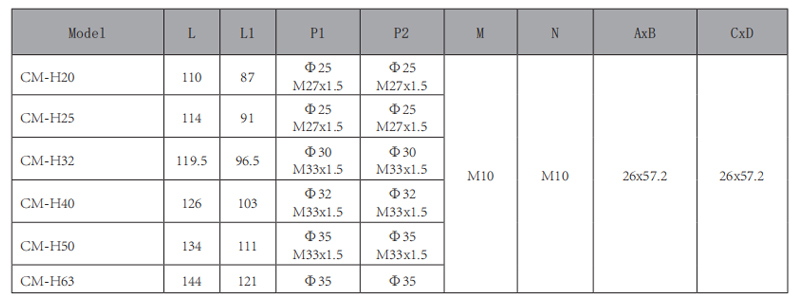

Dimensions

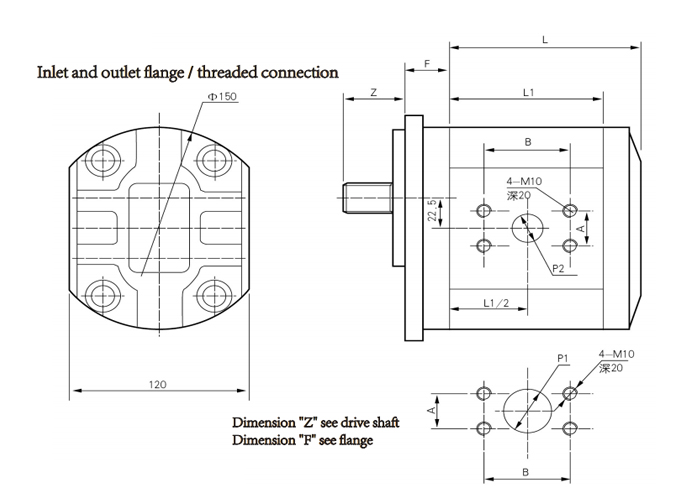

Installation size
